5SD Vertical Deep Well Submersible Electric Pump

Efficient Water Delivery:
Experience reliable and efficient water delivery with our Deep Well Submersible Pump. This pump is designed to provide a steady flow of water from deep underground sources, making it ideal for agricultural, residential, and industrial applications.

High Performance:
With a powerful motor and durable construction, this deep well pump is built to withstand demanding conditions. It delivers consistent water pressure and flow rates, ensuring a reliable water supply for your needs.

Submersible Design:
The submersible design of this pump allows it to be placed deep within the well, efficiency and minimizing noise during operation. The sealed motor ensures protection against water damage and prolongs the pump's lifespan.

Easy Installation:
Designed for easy installation, this deep well pump can be quickly set up and connected to your water system. The compact design makes it suitable for wells with limited space, providing a seamless integration into your water supply system.

Application Limits
Max. ambient tempersture < 40ºC;
Sand content (in mass fraction) up to 0.01%;
Hydrogen sulfide content up to 1.5mg/L, chloride ion content up to 400mg/L;
PH 6.5 to 8.5;
Maximum: 70m below the static water table.

Application Fields
Building/construction work/domestic water supply;
Irrigation and small water work;
Landscaping;
Water conservancy system;
Factary.

*Motor and Pump
Rewindable motor
Single-phase:220-240V/50HZ
Three-phase:380-415V/50HZ
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed

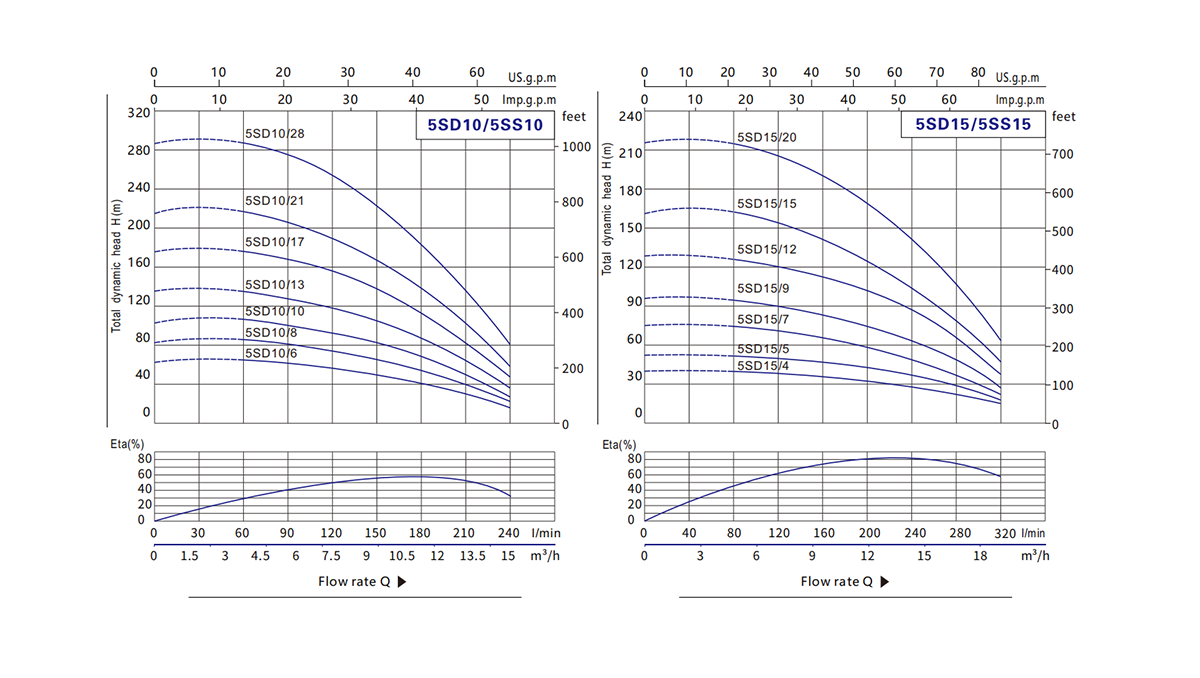

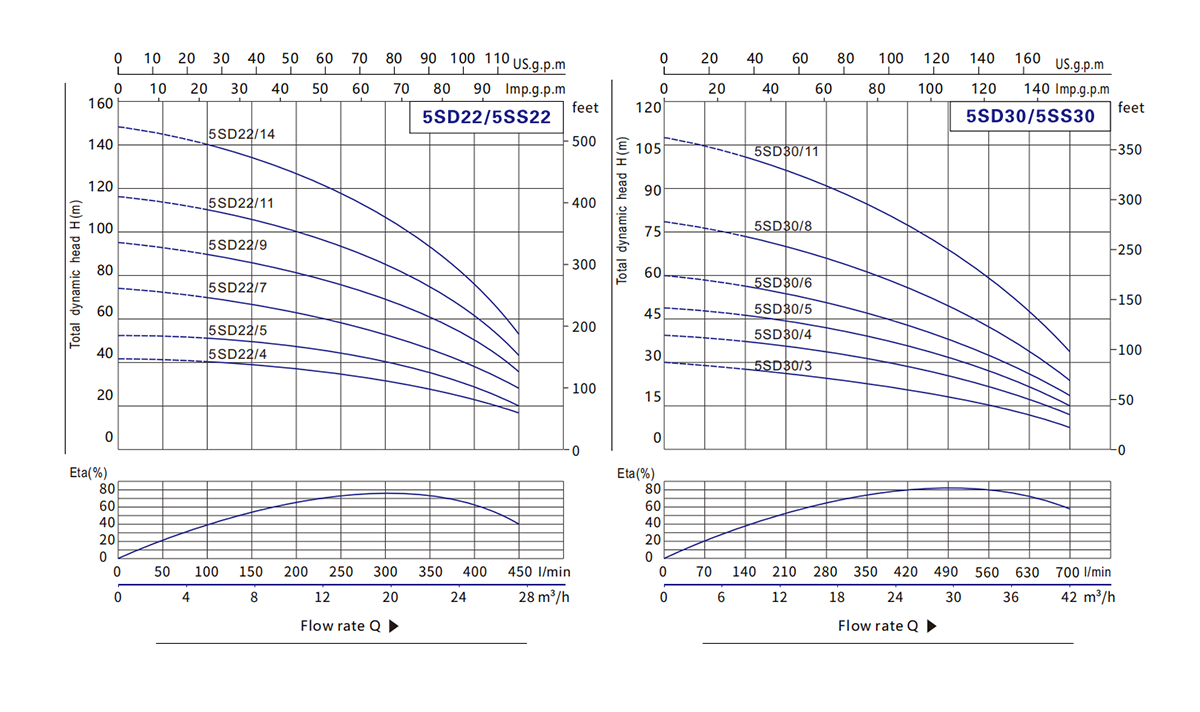

Curve tolerance accordingto ISO 9906

*Options on request
Special mechanical seal
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor

*Warranty:1 year
(according to ourgeneral sales condition)
